Solution description
BP5768D is a 5-channel high precision dimmable constant-current linear LED driver , , ,compatible with ERP directive EU2019/2020 and current distortion standard IEC 61000-3-2:2019 , , ,and also can support CEC application。。。。Good line regulation performance, high precision analog output current dimming , , ,no output current ripple , , ,and no magnetic component。。。。Suitable for small size, low cost dimmable LED application

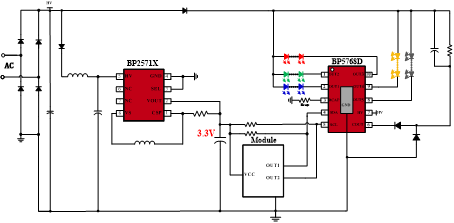

Application Diagram
Smart lighting
Solution Features

    IEC61000-3-2:2018 harmonic standard

    Pst LM<1 , , ,SVM<0.4, DF>0.7

    5-channel LED, 0.1% dimming

    OUT1~5 max 90mA output current

    1024 level control by I2C interface

Product Recommendation
PNPackageOutput PowerMaximum Saturation Current
BP5768DESSOP1010W90mA
